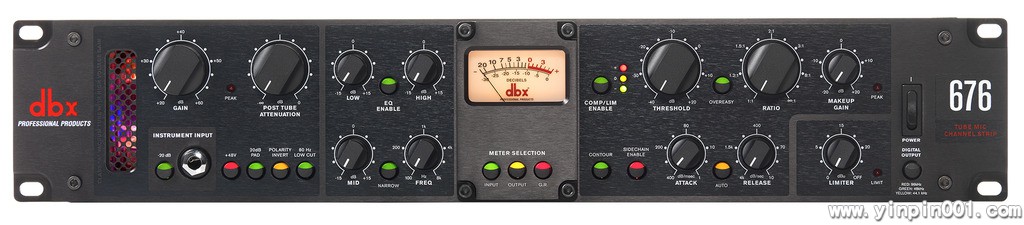

DBX 676 话放通道条/均衡器/压缩器

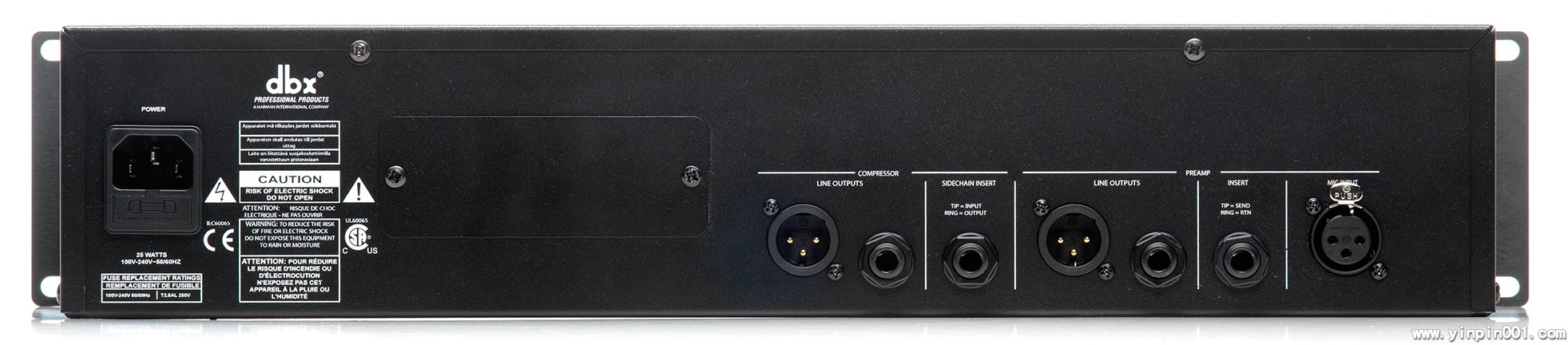

Female XLR Pin 2 Hot; Electronically balanced/unbalanced

1.9 kΩ

>85 dB from 20 Hz to 3 kHz, >70 dB from 3 kHz to 20 kHz

Tip-Sleeve ¼” Jack

(instrument) Unbalanced

500 k Ω

(instrument) +21dBu unbalanced

Tip-Ring-Sleeve ¼”, RF filtered

Unbalanced, Tip = send, Ring = return

Male XLR and Tip-Ring-Sleeve ¼” (Pin 2 and Tip hot)

Servo-balanced/unbalanced

Balanced 30 Ω, unbalanced 15 Ω

> +21 dBm (into a 600 ohm load)

Tip-Ring-Sleeve ¼”, RF filtered

Unbalanced, Ring = output, Tip = input

1 kΩ (output), 50 kΩ (input)

12AU7A / ECC82

+250V DC

+12V DC

20 Hz to 50 kHz, +0/-1dB, 40 dB gain

30 Hz to 70 kHz, +0/-1dB, unity gain

0.25% typical at 0 dBu out, 1 kHz, 40 dB gain

0.2% typical at 0 dBu out, 1kHz, unity gain

Typically > -123 dBu with a 150 Ω source load, 22 Hz to 22 kHz

Mic Insert to Comp Output: <-93 dBu, unity gain, EQ flat and no gain reduction

Selects between microphone XLR input and front panel ¼” instrument input

Sends +48 VDC through 6.81 kΩ resistors to pins 2 and 3 of the microphone input

Attenuates the microphone input by 20 dB

Reverses pins 2 and 3 of the microphone input XLR

Enables an 80 Hz, 12 dB/octave high pass filter in the microphone and instrument signal path

-∞ to +55 dB for Microphone Input; -∞ to +40 dB for Instrument Input

-∞ to 0 dB

Illuminates RED when the Preamp is within 3 dB of clipping

100 Hz, Low-pass shelving filter

10 kHz, High-pass shelving filter

Sweepable from 100 Hz to 8 kHz

Selects the “Q” of the MID Frequency EQ. “OUT” position Q = 0.9; “IN” position Q = 2.9

(All Bands) Sweepable from –15 to +15 dB

-40 dBu to +20 dBu

Selectable OverEasy™ or Hard Knee

Variable 1:1 to ∞:1; 60 dB maximum Compression

Selectable Manual or Auto

Scalable program-dependent; Typically 400 dB/msec to 1 dB/msec

Scalable program-dependent; Typically 4000 dB/sec to 10 dB/sec

Program-dependent, typically 15 ms for 10 dB, 5 ms for 20 dB, 3 ms for 30 dB

Program-dependent, typically 120 dB/sec

-20 dB to +20 dB

Illuminates RED when the Compressor/Limiter is within 3 dB of clipping

dbx PeakPlus™

-4 dBu to + 22 dBu (off)

∞:1

Program-dependent

Universal switch-mode

100 – 240 VAC, 50/60 Hz

20 Watts

T2.5AL 250V
